Integrity 150

Next generation solar-powered asset tracking and edge processing

Zero-maintenance with the longest-lasting battery and shelf life available, Integrity 150 features BLE connectivity and edge processing capacity for sensor data, and the support of the Realm Enablement Suite.

$350

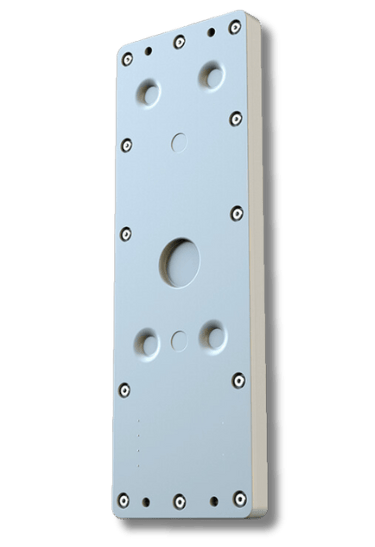

Integrity 150 Description

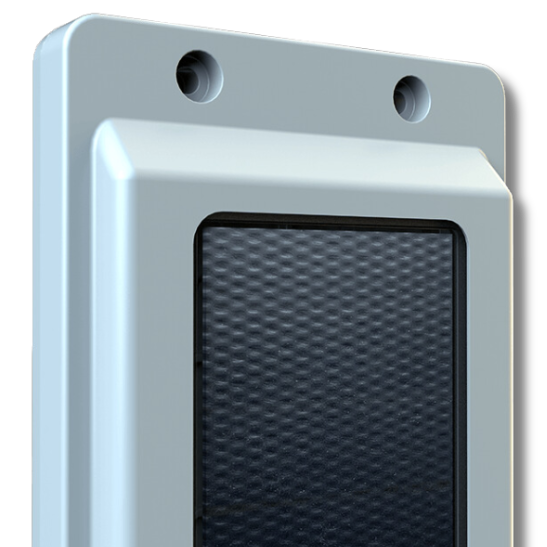

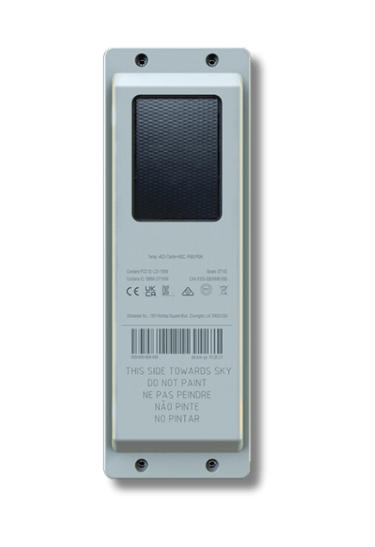

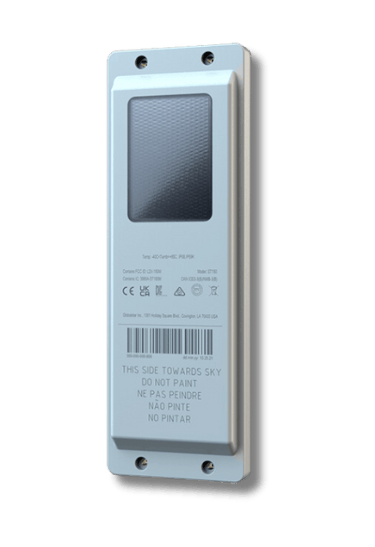

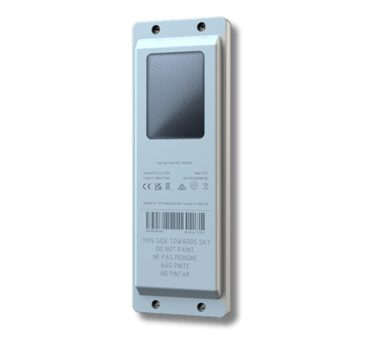

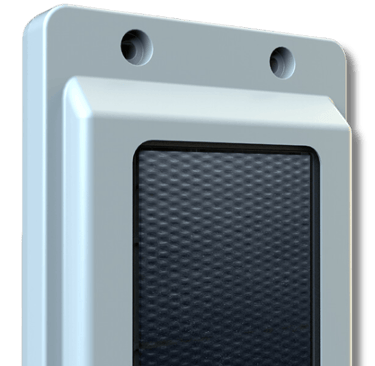

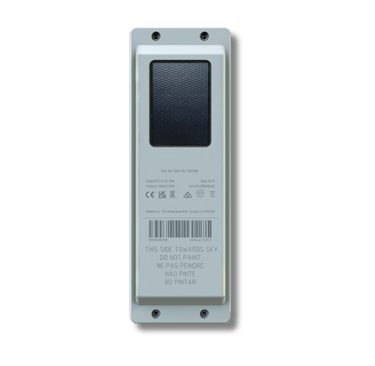

The Integrity 150 is the industry’s first solar-powered tracking and monitoring device, uniquely integrated with an edge application development platform. It is equipped with Globalstar’s industry-leading low-power design, offering the longest battery life and shelf life available on the market. Key features include a GPS receiver for precise location tracking, an accelerometer for motion detection, and a Nordic MCU for processing efficiency. The device supports both standard and customizable messaging capabilities, providing flexibility in communication. Additionally, it includes BLE5 Bluetooth connectivity, enabling seamless integration with various sensors, and a tamper detection system for enhanced security.

Integrity 150 Key Features

✓ Open-source common architecture​​
✓ Delivers reliable and secure location reporting​
✓ Unprecedented payload options ​​
✓ BLE 5.0 protocol to connect sensors and edge computing solutions​​
✓ Solar-powered batteries can last 10+ years​​
✓ Increased shelf life​​

Inventory management​​
✓ PTP (Previous Track Point)​
✓ Mobile app configures multiple devices at once​
✓ Application Enablement​ ​
✓ Unified API’s​​
✓ Extensive Library of Application Software​

DIMENSIONS
1”(D) X 10.39” (H) X 3.38” (W) 26.6 mm (D) x 264 mm (H) x 86.1 mm (W)

WEIGHT
14.2 oz/402 g

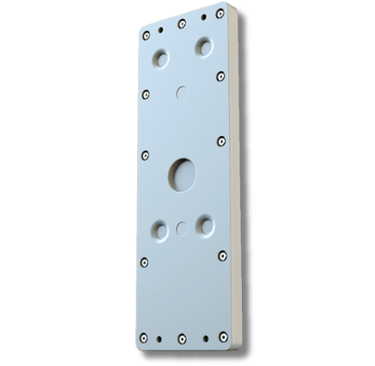

With optional mounting bracket 32.02 oz. (908 g)

OPERATING TEMPERATURE
-40° F to 185° F (-40° C to +85° C)

BATTERY TYPE
Built-in rechargeable Li-Ion batteries (non-replaceable)

SATELLITE TECHNOLOGY
Global LEO Satellite operation using the Globalstar Satellite Network. See Globalstar website for Coverage Map.

CERTIFICATIONS
FCC, ISED, CE, UKCA - PENDING: ANATEL

STANDARDS
IP68/69K - IEC 60945 (Marine) - MIL-STD-810G for: - High and Low Temperature - Immersion - Dust - Water spray - Thermal Shock - Mechanical Shock - Rail Impact - Vibration (Rail, Truck)

Power Better Operational Intelligence with Smart Data

Realm's application enablement platform introduces a new standard to develop AI-driven applications that define and process data at the edge. Quickly spin up vertical specific solutions at a fraction of the cost and development time and transmit data that is smarter and works harder.

✓ Standards Based Architecture- new features and platform upgrades that can reliably access the same hardware, APIs as previous versions with no specialized coding

✓ Health Monitoring – Pro-active device health monitoring, superior support

✓ Application Enablement Platform – Leverage industry leading BLE, Nordic C, comprehensive unified APIs

✓ Applications Library – Ready built library that also serves as a hotbed for new applications development

✓ BLE – Sophisticated libraries for sensors, updaters, configuration, and data

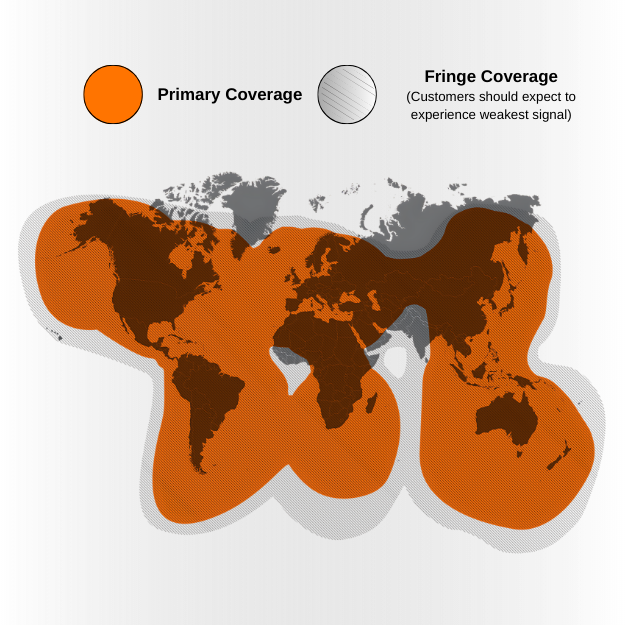

Coverage Map

Completion rates based on Remote Telemetry Units (RTU) that are set to transmit a single packet message 3-times (the original transmission plus 2-repeats) in the frequency appropriate for the given regions. This is an estimate of coverage only. Actual Remote Telemetry coverage may vary based on terminal location, terrain features, signal strength, and other factors affecting satellite communications. Coverage may vary. Specifications subject to change without notice. This map indicates areas of potential satellite coverage only. Actual availability of service in any particular country may be subject to government approval.

By choosing GPS AnyPlace's Integrity 150, customers will gain access to a revolutionary solar-powered tracking and monitoring solution with advanced capabilities for edge application development. This device provides exceptional benefits such as the longest battery life in the industry, ensuring continuous operation without frequent recharges. Its low-power design and integrated GPS receiver guarantee reliable location tracking, while the accelerometer and tamper detection add extra layers of security. The BLE5 Bluetooth connectivity allows seamless integration with various sensors for enhanced monitoring, and the customizable messaging system ensures tailored communication. With this cutting-edge technology, users will experience superior asset management, real-time data insights, and peace of mind knowing their valuable assets are protected.

Coverage Details
